Wanlong Slab Stone Cutter Polisher

Posted on

Model NO.: LXM-8
Grinding Machine Type: Line Polisher
Grinding Method: Wet Grind
Certification: API, CCC, UL, SONCAP, GOST, ISO, CE, SGS
Condition: New
Motor: Siemens
Contactor: FUJI
Air Cylinder: Germany Airtec
After-Sales Serivces: Overseas Engineers Available
PLC: Mitsubishi / Panasonic
Inverter: Japan Yaskawa
Bearing: Japan NSK
Linear Guide: Taiwan Hiwin
Electricity: 380V/50Hz (Others Are Available)
Name: Stone Polishing Machine
Trademark: wanlong
Transport Package: by Container
Specification: 8600*2100*2100
Origin: China
HS Code: 8464209000

wanlong slab stone cutter polisher

Product Description


Applicable for polishing the surface of granite slabs and tiles.
Automatic polishing machine of newly design, which absorbs the most advanced technology of granite polishing and has created several patent technologies.
Superior material, reasonable structure, completed processing technique, stable performance, high efficiency and energy saving.
Electric parts are of worldwide brand. PLC control system and friendly human
-machine interface via LCD to achieve computerized control.
Automatically detect the slab profile by laser scanning device.
Sensitive collision avoidance of polishing head.

    LXM-6 LXM-8 LXM-12 LXM-14 LXM-15 LXM-16
Polishing Heads number (optional) pc 6 8 12 14 15 16
Working width (optional) mm 500-1250 500-1250 500-1250 500-1250 500-1250 500-1250
Thickness mm 15-50 15-50 15-50 15-50 15-50 15-50
Air Consumption m³/h \ \ 14 19 24 29
Main motor power KW 7.5 7.5 7.5 7.5 7.5 7.5
Dimensions (L x W x H) mm 6000*2100*2100 6700*2100*2100 7100*2100*2100 7800*2100*2100 8150*2100*2100 8600*2100*2100
Main motor power KW 87.5 95 102.5 110 117.5 125
Total weipht m³/h 10 14 18 22 26 30

Advantages

1, Auto Lubrication System for Polishing Heads and Key Bearings!
2, PLC Intelligent Control System! Warning Device for Polishing Material Wearing!
3, Imported Electric Parts: SIEMENS Motor and Switch, FUJI Contactor, Japan Yaskawa Inverter
5, Auto Detector for Slab Size
6, Unique Damping Device for Polishing Heads
7, AIRTEC Air Cylinder, Germany Technology, TAIWAN Produced
8, Independent Switch Gear for Each Polishing Head Pressure Adjustable for Each Head
9, TAIWAN Linear Guide Rail for Crossbeam Back and Forward Movement.
10, Anti-collision Device for Crossbeam Back and Forward Movement While Limit Switch be out of order
11, With Slab Loading and Unloading Trolley! Cleaning Head and Dryer


LXM-16 Output: 30-35m2 per hour for 85 degree Shinning!
LXM-20 Output: 35-40m2 per hour for 85 degree Shinning!
Wanlong Slab Stone Cutter Polisher
Wanlong Slab Stone Cutter Polisher
Wanlong Slab Stone Cutter Polisher
Wanlong Slab Stone Cutter Polisher


Wanlong Slab Stone Cutter Polisher
Wanlong is now one of the biggest manufacturers of diamond tools, supplying products for stone cutting, polishing, grinding and drilling.

Professional Team

23 years of experience in diamond tools industry;
900 experienced employees;
2100 clients from 108 countries and regions;
200,000 pieces segments of daily production output.

Company Information

Diamond tools: Wanlong's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 22 years in the line of diamond tools industry, Wanlong's technological innovation improves the cutting efficiency, and save the cost for end-users.

Stone Industry: Wanlong developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140x280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).

Machinery: Wanlong Mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. More than 22 years' practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. Wanlong machinery will fit the needs of customers with more sophisticated services to fulfill the mission.



Following products are supplied:

1. Diamond segments and diamond saw blade, ranging from 200mm to 3500mm.

2. Dry cutting & turbo saw blade.

3. Diamond wire and beads for granite & marble.

4. Polishing abrasive.

5. PDC Cutters for Oil & Gas Drill Bits and Chain Saw machine.

6. Bridge Cutting Machine & Auto Polishing Machine, etc.

 1).QSQ-2200/2500 Bridge Multiblade Block Cutter

 2). QZQ-900/1200 Bridge Cutting Machine

 3).PLC-400/600 Laser Bridge Cutting Machine

 4).MS-2600/3000 Polishing Machine

 5).SY-S80 Hydraulic Pressing Machine, etc.

Kindly please any more info needed, dont heistate to contact Lisa fu At:


 Wanlong Slab Stone Cutter Polisher


Application Function: measurement for oxygen, crystallization for measuring carbon content, measuring low carbon content under the carbon oxygen balance principle,calculation and measurement of acid soluble aluminum

Molten Iron Sampler is made of fiber which is high quality and high temperature resistance. It is dedicated to collect metal liquid from furnace or ladle for chemical analysis. The sampler could be resistant to extreme cold and hot and there will be no cracks, which means that it can be used repeatedly

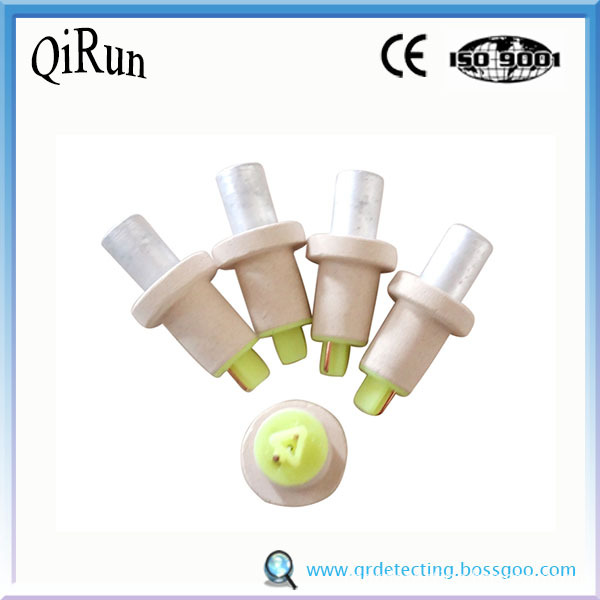

K type 604 thermocouple tipdisposable-thermocouple-sensor-tips

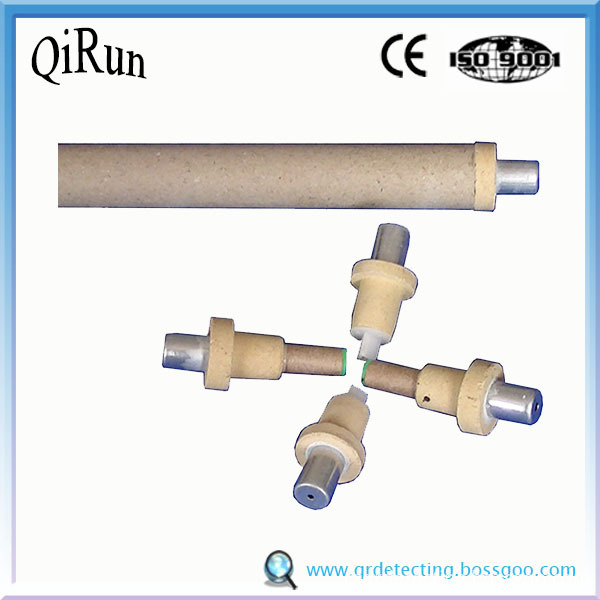

Foundry Temperature Measurement
